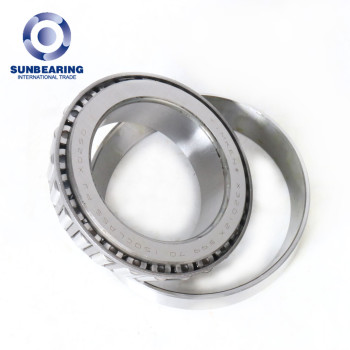

SUNBEARING 30217 Tapered Roller Bearing Silver 85*150*28mm Chrome Steel GCR15
- FOB Price
US $8.821 - 2000 piece
- group name
- Tapered Roller Bearing
- Min Order
- 1 piece
- brand name
- SUNBEARING Rolling Bearing Manufacturer
- model
- 30217
- Nearest port for product export
- Dalian
- Delivery clauses under the trade mode
- FOB, CFR, CIF, DDP
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Tue, 05 Apr 2022 17:16:05 GMT
Paramtents
Color Silver
Service OEM Service
Sample Available
MOQ 1
Packging & Delivery
- 16cm x9cm x3cm
-
Min Order1 piece
Briefing
Detailed
Product Description
Tapered Roller Bearing 30217 | |
|---|---|
Specification | |
Design Units | Metric |
Structure | Roller Bearing |
Weights | 2.08kgs |
Cage Material | Steel cage |
Material | Chrome Steel GCR15 |
Ball Type | Carbon chromium steel |
Seals Type | Metal Seals |
Certificate | ISO9001:2008 |
Advantage | The base material provided a good shock-absorbing capacity. |
Number of Rows | Single |
Dimensions | |
d-Bore Diameter | 85mm |
D-Outer Diameter | 150mm |
Precision Rating | P5 P6 P4 P2 P0 |
Clearance |
C2 C3 C4 C5 C0 |
H-Total Width | 28mm |
Basic Load Ratings | |
Cr Dynamic Load Rating | 175000N |
C0r Static Load Rating | 220000N |
Tapered Roller Bearing Feature:
High load-carrying capacity
The large number of rollers, which have an optimum conformity with the washer raceways, enables the bearings to accommodate heavy axial and simultaneously acting radial loads.
Accommodate misalignment
Tapered roller bearings are self-aligning and can accommodate misalignment .
Separable design
Tapered roller bearings are separable, making it possible to mount and dismount the housing washer separately from the shaft washer and roller and cage assembly. In addition this facilitates maintenance inspections.
High-speed capability
The cage designs and the optimum conformity of the rollers with the washer raceways make the bearings suitable for relatively high speeds.
Long service life
The tapered roller profile reduces edge stresses at the roller/raceway contact.
Low friction
The optimized roller end/flange contact keeps frictional heat at a low level, even at high speeds.
