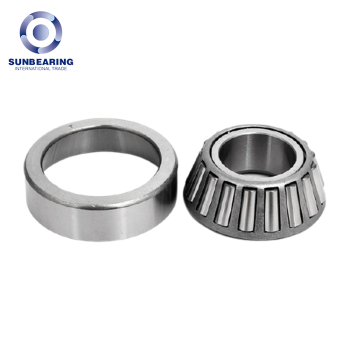

SUNBEARING 30311 Tapered Roller Bearing Silver 55*120*29mm Chrome Steel GCR15
- FOB Price
US $14.001 - 2000 piece
- group name
- Tapered Roller Bearing
- Min Order
- 1 piece
- brand name
- SUNBEARING Rolling Bearing Manufacturer
- model
- 30311
- Nearest port for product export
- Dalian
- Delivery clauses under the trade mode
- FOB, CFR, CIF, DDP
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Tue, 05 Apr 2022 17:07:04 GMT
Paramtents
Color Silver
Service OEM Service
Sample Available
MOQ 1
Packging & Delivery
- 13cm x6cm x3cm
-
Min Order1 piece
Briefing
Detailed
Product Description
Tapered Roller Bearing 30311 | |
|---|---|
Specification | |
Design Units | Metric |
Structure | Roller Bearing |
Weights | 1.66kgs |
Cage Material | Steel cage |
Material | Chrome Steel GCR15 |
Ball Type | Carbon chromium steel |
Seals Type | Metal Seals |
Certificate | ISO9001:2008 |
Advantage | Can withstand radial load and uniaxial axial load |
Number of Rows | Single |
Dimensions | |
d-Bore Diameter | 55mm |
D-Outer Diameter | 120mm |
Precision Rating | P5 P6 P4 P2 P0 |
Clearance |
C2 C3 C4 C5 C0 |
H-Total Width | 29mm |
Basic Load Ratings | |
Cr Dynamic Load Rating | 165000N |
C0r Static Load Rating | 163000N |
Tapered roller bearings comprise solid inner and outer rings with tapered raceways and tapered rollers in a window cage. Open bearings are not self-retaining. As a result, the inner ring with the rollers and the cage can be fitted separately from the outer ring. Metric and inch size bearings are available. Designs with a K in the designation have inch dimensions. For new designs, however, bearings in metric sizes should always be used in preference.
Radial and axial load capacity
Contact angle
Compensation of angular misalignments
Matched bearings
Integral tapered roller bearings
No setting of axial internal clearance required
Sealing
Lubrication
Operating temperature
Cages
Suffixes
