UCHA210 Hanger Type Mounted Bearing 50*118*51.6mm Cast Iron SUNBEARING
- FOB Price
US $10.711 - 2000 piece
- group name
- Pillow Block Bearing
- Min Order
- 1 piece
- brand name
- SUNBEARING Rolling Bearing Manufacturer
- model
- UCHA210
- Nearest port for product export
- Dalian
- Delivery clauses under the trade mode
- FOB, CFR, CIF, DDP
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Tue, 29 Mar 2022 15:37:26 GMT
Paramtents
Color Green
Service OEM Service
Sample Free Sample
MOQ 1
Packging & Delivery
- 12cm x6cm x6cm
-
Min Order1 piece
Briefing
Detailed

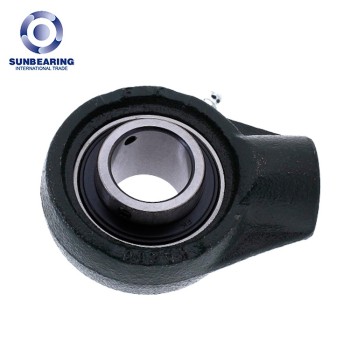

UCHA210 Hanger Type Mounted Bearing 50*118*51.6mm Cast Iron SUNBEARING
Product Description
Product Name | Pillow Block Bearing UCHA210 | ||
|---|---|---|---|
Structure | Pillow block Bearing | Seals | Rubber Seal |
Bore Size | 50mm | Bore Type | Round |
Outside Diameter | 118mm | Duty Type | Medium Duty, Heavy Duty, and Others |
Width | 51.6mm | Operating Temperature Range: | -20 to +120°C |
Material | Plastic; Chrome Steel, Carbon Steel, Stainless Steel | Lubrication Type: | Oil; Grease; |
Cage | GCR 15, Stainless steel, etc. | Series: | UCHA |
Certificate | ISO9001:2008 | Features | Through strict inspection and international certification |
Colour | Green | Bearing Structure | Spherical Surface Ball Bearing |
The Number Of Rows | Single | Weight | 2.1kgs |
Clearance | C2 C0 C3 C4 C5 | Tolerance | ABEC1 ABEC3 ABEC5 ABEC7 |
Pillow Block Bearing Introduction:
UCHA Pillow Block Bearing / Pillow Housings: Supplied with a fully sealed bearing insert fitted in the housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required.
Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing.
