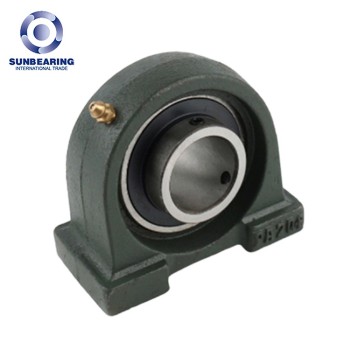

SUNBEARING UCPA207 Plummer Block Housing Bearing 35*47.6*110mm SUNBEARING
- FOB Price
US $3.571 - 2000 piece
- group name
- Pillow Block Bearing
- Min Order
- 1 piece
- brand name
- SUNBEARING Rolling Bearing Manufacturer
- model
- UCPA207
- Nearest port for product export
- Dalian
- Delivery clauses under the trade mode
- FOB, CFR, CIF, DDP
- Acceptable payment methods
- T/T, L/C, PayPal, Westem Union
- update time
- Thu, 22 Sep 2022 16:31:17 GMT
Paramtents
Color Green
Material Chrome Steel GCR15
Service OEM Service
Sample Free Sample
MOQ 1
Packging & Delivery
- 12cm x5cm x4cm
-
Min Order1 piece
Briefing
Detailed
SUNBEARING UCPA207 Plummer Block Housing Bearing 35*47.6*110mm SUNBEARING
Product Description
Product Name | Pillow Block Bearing UCPA207 | ||
|---|---|---|---|
Structure | Pillow block Bearing | Seals | Rubber Seal |
Bore Size | 35mm | Bore Type | Round |
Outside Diameter | 47.6mm | Duty Type | Medium Duty, Heavy Duty, and Others |
Width | 110mm | Operating Temperature Range: | -15 to +100°C |
Material | Plastic; Chrome Steel, Carbon Steel, Stainless Steel | Lubrication Type: | Oil; Grease; |
Cage | GCR 15, Stainless steel, etc. | Series: | UCPA |
Certificate | ISO9001:2008 | Features | It can operate satisfactorily under hard working conditions. |
Colour | Green | Bearing Structure | Spherical Surface Ball Bearing |
The Number Of Rows | Single | Weight | 1.7kgs |
Clearance | C2 C0 C3 C4 C5 | Tolerance | ABEC1 ABEC3 ABEC5 ABEC7 |
Version: Housing, painted.
Note: Pillow block bearings consist of a sealed single-row ball bearing with a spherical outer ring which is mounted in a housing. Because of the spherical outer surface of the bearing, shaft misalignment can be compensated for. The bearings are manufactured with a plus tolerance. This results in transition or press-fit when using shafts with h-tolerances. The shaft is secured by grub screws on the inner ring.
In normal applications, UCPA pillow block bearings are maintenance-free due to lifetime lubrication. In difficult environmental conditions, re-lubrication can be carried out over the grease nipple.
All housing dimensions are nominal dimensions for which the usual casting tolerances must be taken into consideration.
Temperature range: -15 °C to +100 °C.
