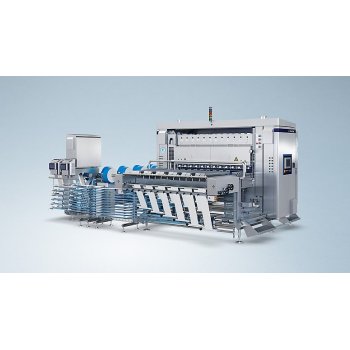

Industrial High-Capacity Rotary Molding Line for Ice Cream Sticks | Global OEM ODM Manufacturer & Wholesale Supplier of Food Processing Equipment

group name: Machinery Equipment

Min Order: 1 piece

brand name: SUNBEARING Rolling Bearing Manufacturer

model: OEM ODM

Nearest port for product export: Dalian

Delivery clauses under the trade mode: FOB, CFR, CIF, DDP

Acceptable payment methods: T/T, L/C, PayPal, Westem Union

update time: Thu, 16 Jul 2026 14:23:24 GMT

contact supplier

Paramtents

Production Capacity 500 to 500,000+ units/hour
Motor Power 2.2kW to 11.25kW
Precision Tolerance ±0.1mm to ±0.5mm
Machine Weight ~150 kg to 2,500+ kg
Dimension (L×W×H) 2.2×1.9×1.3 m for a rotary cutting machine
Raw Material Primarily processes wood, with birch being a commonly specified example for its uniform, tasteless
Automation Level Ranges from semi-automatic for basic models to fully automatic with PLC control systems
Customization Many machines allow you to adjust molds, blade positions
Hygiene & Safety Food-grade construction materials

Packging & Delivery

Min Order1 piece

Briefing

This fully automatic wooden ice cream stick production line is engineered to efficiently transform raw birch logs into high-quality, food-grade finished sticks. The integrated system covers the entire workflow, from rotary cutting and precision shaping to drying, chamfering, and automatic bundling.

Equipped with advanced PLC control systems, the machinery ensures stable, high-speed output with tight dimensional tolerances (as fine as ±0.1mm). Built with durable industrial components and food-safe materials, it offers reliable 24/7 operation while minimizing material waste. Customizable mold options allow for the production of various stick sizes and shapes to meet diverse market demands.

Key features include CE certification, low energy consumption, and user-friendly interfaces for simplified operation and maintenance.

Detailed

Industrial High-Capacity Rotary Molding Line for Ice Cream Sticks | Global OEM ODM Manufacturer & Wholesale Supplier of Food Processing Equipment

Product Overview and Specifications

This fully automatic wooden ice cream stick production line is an integrated manufacturing system engineered to transform raw wood logs into high-quality, food-grade finished sticks with minimal manual intervention. The line is designed for industrial-scale production of ice cream sticks, popsicle sticks, coffee stirrers, tongue depressors, and similar wooden products.

Built with advanced CNC servo-driven technology, the system ensures high output, tight dimensional tolerances (±0.1mm), and consistent product quality. The entire process—from log preparation to final bundling—is automated, reducing labor costs and increasing efficiency.

Stage	Equipment	Specifications
1. Raw Material Preparation	Log Cutting Machine	Cuts full-length logs into uniform short segments
2. Veneer Rotary Peeling	CNC Rotary Cutting Machine	Processing Diameter: 45mm–800mm; Spindle Speed: 280 RPM; Cutting Thickness: 0.3mm–6.5mm; Accuracy: ±0.05mm–±0.1mm; Power: 22.7 KW (380V, 50Hz); Capacity: 2–2.5 m³/hour; Weight: 2000–2250 KG; Dimensions: 2500×2400×1300mm
3. Stick Forming	CNC Carved Cutting Machine	Finished Sizes: 114mm, 93mm (adjustable via blade change); Interchangeable carved cutting blades
4. Drying & Initial Polishing	Steam Boiler + Polisher (PG-6-L3) + Heat Exchanger (HX-5) + Draft Fan (DF-15)	Target Moisture Content: 8%–12%; Removes moisture and provides initial surface polishing
5. Chamfering	Chamfering Machine (e.g., MQ-01SX)	Rounds both ends; removes burrs; ensures food-contact safety
6. Dust Removal & Polishing	Dust Removing & Polishing Machine	Eliminates residual dust; refines surface smoothness
7. Visual Inspection	Visual Inspection Machine	Accuracy: Up to 97%; Speed: 45,000–55,000 pcs/hour; Four-camera system for detecting surface defects
8. Bundling	Automatic Bundling Machine	Bundle Size: 50 pcs/bundle; Automatic counting and bundling
9. Overall Line Performance	Full Automatic Line with PLC Control	Daily Output: 300,000–500,000 pcs; Tolerance: ±0.1mm; Moisture: 8%–12%; Power: 380V/440V, 50/60Hz, 3-phase; Certification: CE; Warranty: 1 year on core components
10. Auxiliary Equipment	Blade Sharpening Machines	Maintains and sharpens rotary blades and carved cutting dies

Key Advantages

1. High Precision – CNC servo-driven technology ensures uniform veneer thickness and clean cuts with ±0.1mm tolerance

2. Versatility – Machine can produce various sizes and shapes by changing carved cutting blades; also suitable for coffee stirrers, tongue depressors, and matchsticks

3. Material Efficiency – Can utilize leftover materials from furniture factories and wood crafts factories

4. Multi-stage Quality Control – Combines mechanical selection with four-camera visual inspection system for layered defect detection

5. Food Safety Compliant – Produces smooth, splinter-free sticks with rounded edges that meet food-contact standards

After-Sales Support

Installation Guidance: Engineers available to guide installation at customer's location

Training: Personnel training provided until qualified products are made

Warranty: 3-month guarantee on core components; lifelong repair service available

Customization: Machines can be tailored to specific production capacity and budget requirements
